• Bright front/rear bumpers w/step pads
• Bright grille
• Halogen headlamps
• Cargo light integral w/stop lamp
• Removable tailgate w/caliper latches, color-keyed "Dodge" decal
• Dual black manual 6" x 9" exterior mirrors
• Tinted glass windows
• Variable speed intermittent windshield wipers
• Corrosion resistant zinc-coated galvanized steel w/anti-chip coating
• Dual rear hinged access doors

• HD vinyl 40/20/40 double split-back bench seats w/rear flip-type bench seat
• Black vinyl floor covering
• 2-spoke steering wheel
• Instrument cluster-inc: 120/125 MPH speedometer
• Fasten seat belts/key-in-ignition/headlamps-on warning buzzer
• Hood release in cab
• Electronic AM/FM stereo radio w/cassette
• Fixed antenna
• Color-keyed instrument panel w/ash receiver & non-locking glove box
• Dash insulation liner
• Cigar lighter w/pwr outlet
• Day/night rearview mirror
• Color-keyed full length door trim panels w/armrests
• Color-keyed sun visors
• Passenger assist handle
• Dual-opening retractable cup holder
• Storage tray
• Cab-back panel stowage
• Cargo lamp

• Driver/front passenger "Next Generation" air bags w/passenger on/off switch
• Rear-wheel anti-lock brakes
• Color-keyed unibelt restraint system w/front/rear center lap belts, rear shoulder harness
• Front shoulder belt height adjusters
• Side-guard door beams
• Dual note electric horn

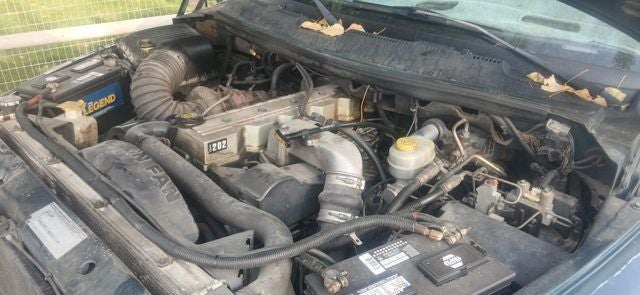

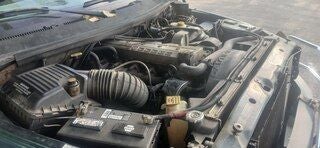

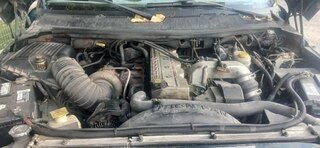

5.9L (359) HO 24-VALVE I6 CUMMINS TURBO DIESEL ENGINE

• HD service group
• diesel message center (w/"Low Fuel"/"Low Oil" /"Water in Fuel"/"Wait to Start"/"Brakes"/ "Anti-lock Brakes" warning lights)
• "Cummins Turbo Diesel" nameplates
• diesel sound insulation on inner hood/dash/cowl/floor pads
• tachometer
• engine block heater

• 4 Speakers
• AM/FM radio
• Cassette
• Power steering
• Speed-sensing steering
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Passenger cancellable airbag
• Bumpers: chrome
• Rear step bumper
• Voltmeter
• Front Center Armrest w/Storage
• Variably intermittent wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 117
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 24.0
• Total Cooling System Capacity (qts): 20.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4850
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3070
• Curb Weight - Rear (lbs): 2140
• Gross Vehicle Weight Rating Cap (lbs): 8800
• Gross Combined Wt Rating (lbs): 16,000
• Gross Combined Wt Rating (lbs): 14,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Suspension
• Suspension Type - Front: Link-Coil
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 4850
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4850
• Axle Capacity - Rear (lbs): 7500
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.54
• Axle Ratio (:1) - Rear: 3.54
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.5 x 1.50
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 13.0 x 2.5
• Tires
• Front Tire Order Code: TYD
• Rear Tire Order Code: TYD
• Spare Tire Order Code: TYD
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 3040
• Rear Tire Capacity (lbs): 3040
• Spare Tire Capacity (lbs): 3040
• Revolutions/Mile @ 45 mph - Front: 683
• Revolutions/Mile @ 45 mph - Rear: 683
• Revolutions/Mile @ 45 mph - Spare: 683
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34.0
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 138.7
• Length, Overall w/o rear bumper (in): 220.1
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 77.2
• Overhang, Front (in): 37.9
• Overhang, Rear w/o bumper (in): 43.5
• Front Bumper to Back of Cab (in): 136.9
• Cab to Axle (in): 39.7
• Cab to End of Frame (in): 79.7
• Ground to Top of Load Floor (in): 37.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 8.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 77.5
• Cargo Box Width @ Top, Rear (in): 60.4
• Cargo Box Width @ Floor (in): 64.2
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.4
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 55.5
• Ext'd Cab Cargo Volume (ft³): 48.5
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 65.6
• Second Head Room (in): 39.4
• Second Leg Room (in): 31.6
• Second Shoulder Room (in): 67.7
• Second Hip Room (in): 66.8
• Summary
• Vehicle Name: Dodge Ram 2500
• Body Style: Club Cab 6.5'
• Body Code: 139" WB
