• Rear axle, 3.08 ratio (Not available with (K5L) Trailering Package.)
• Differential, heavy-duty locking rear
• Transfer case, active, single-speed, electronic Autotrac with rotary controls, does not include neutral. Cannot be dinghy towed. (Requires (GU4) 3.08 rear axle ratio. Not available on 2WD models, (K5L) heavy-duty trailering package or with (Z71) off-road suspension package.)
• Alternator, 160 amps
• 4-wheel drive
• Trailering equipment, heavy-duty includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver
• Recovery hooks, 2 front, frame-mounted
• GVWR, 7300 lbs. (3311 kg) (Standard on 4WD models.)
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Tools, mechanical jack and wheel wrench stored in rear quarter trim

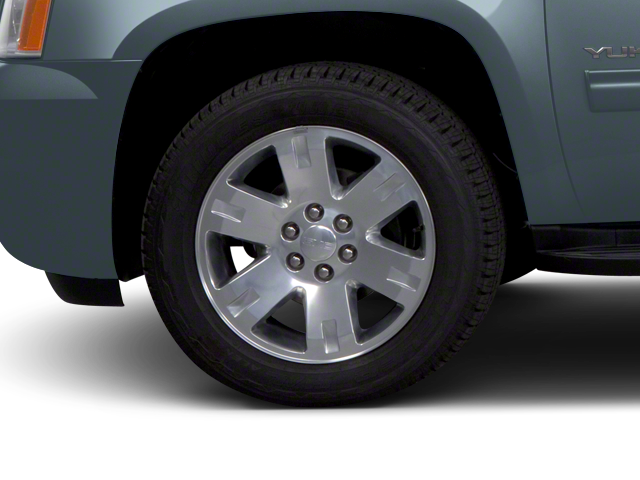

• Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) bright aluminum, sport (Not available with (PCQ) SLT Chrome Package.)
• Tires, P265/70R17 all-season, blackwall
• Wheel, 17" (43.2 cm) full-size, steel spare
• Tire carrier, lockable outside spare winch-type mounted under frame at rear
• Tire, spare P265/70R17 all-season, blackwall (Upgradeable to (4JP) P265/70R17 on-/off-road, blackwall spare tire.)
• Luggage rack side rails, roof-mounted, Black
• Luggage rack center rails
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Air dam, Gray

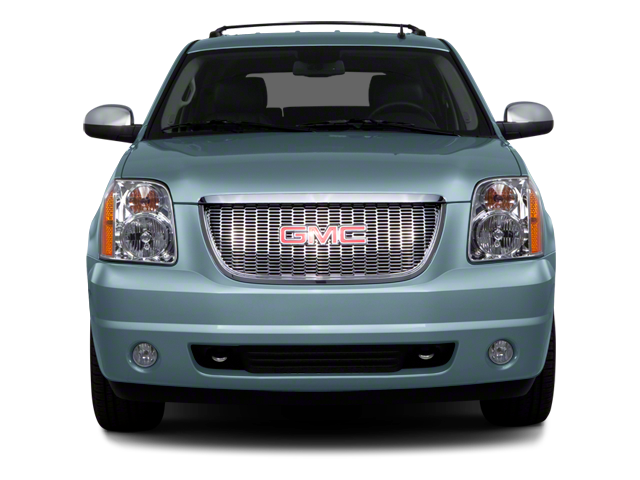

• Grille, chrome surround
• Assist steps, Black, mounted between front and rear wheels (Upgradeable to (BRS) power-retractable assist steps.)
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front round halogen
• Mirrors, outside heated power-adjustable, manual-folding (Mirrors are body-color.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wipers, front intermittent wet-arm with flat blade and pulse washers
• Liftgate with liftglass rear door system with rear-window wiper/washer
• Wiper, rear intermittent with washer

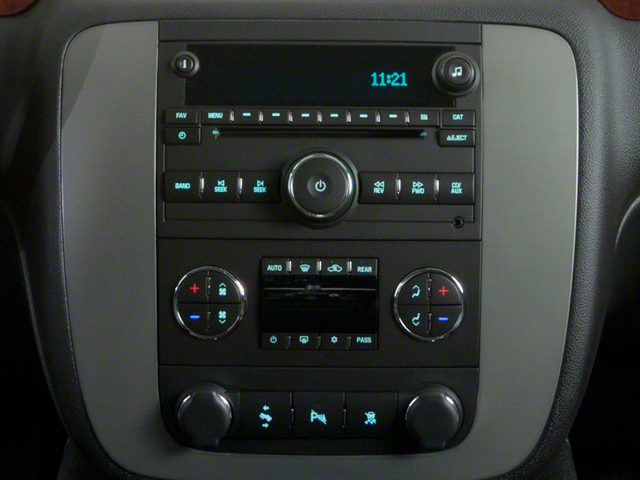

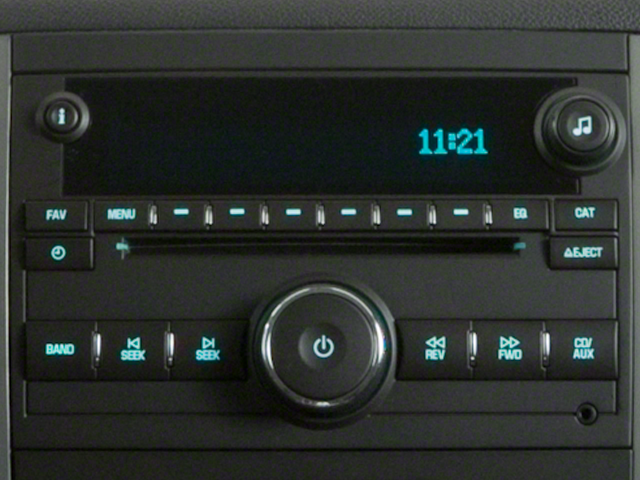

• Audio system, AM/FM stereo with CD player and MP3 playback seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed compensated volume, TheftLock, auxiliary input jack, and USB port (Not available with (U42) rear seat entertainment system or with (PCJ) Sun, Entertainment and Destinations Package.)
• Audio system feature, USB port
• Bose Sound System, premium 9-speaker system with subwoofer in center console
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• XM Radio is standard on nearly all 2011 GM models and includes 3 months of trial service. Get over 170 channels, including: commercial-free music, sports, news, talk, entertainment, comedy, family and kids' channels, and much more. With XM's incredible range of programming, everything worth listening to is on XM (Requires a subscription sold separately by XM after the first 90 days. Available only in the 48 contiguous United States and District of Columbia. Visit gm.xmradio.com for details.)
• Antenna, integral in rear quarter glass

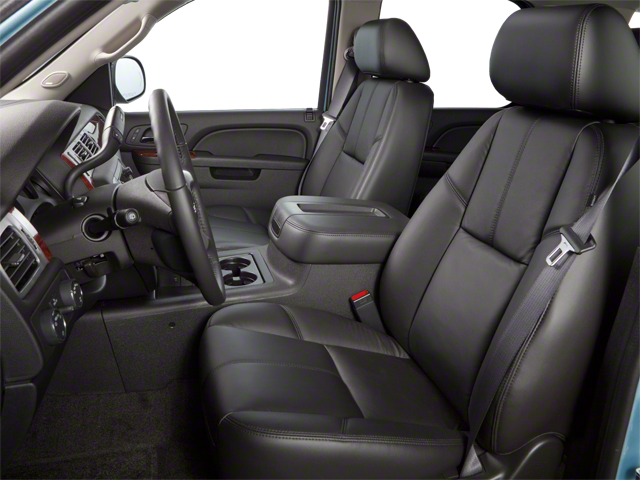

• Seats, front bucket with leather-appointed seating (AG1) 6-way power driver and (AG2) front passenger seat adjusters, adjustable head restraints, (AM1) driver manual lumbar control, floor console and rear storage pockets
• Seats, third row 50/50 split-bench with vinyl 3-passenger, removable, all-belts-to-seat

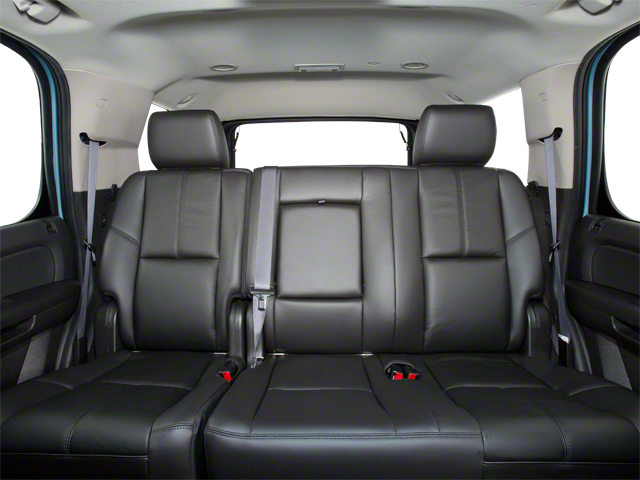

• Seats, second row 60/40 split-folding bench with leather-appointed seating 3-passenger with center armrest and storage tray
• Seat adjuster, driver 6-way power
• Seat adjuster, front passenger 6-way power

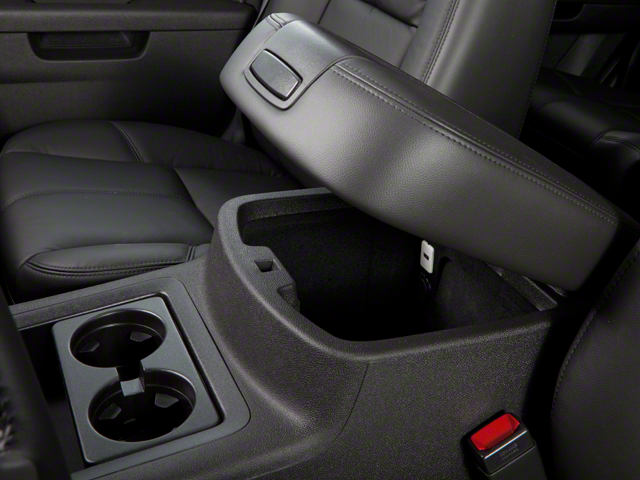

• Console, floor with storage area, cup holders and integrated second row audio and HVAC controls
• Cup holders, in front seating area
• Cup holders, in rear of floor console
• Cup holders, driver and passenger-side in third row side trim
• Floor mats, color-keyed carpeted first and second row, removable
• Floor covering, color-keyed carpeting

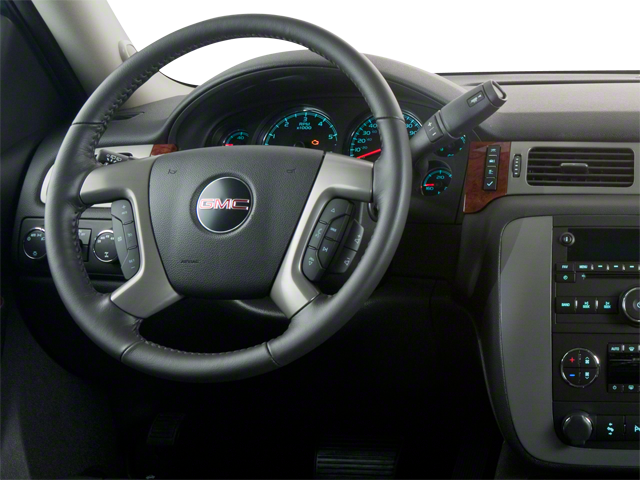

• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio controls cruise controls and OnStar Hands-Free calling
• Tow/haul mode selector, button located at end of shift lever
• Driver Information Center, full-functionality included
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

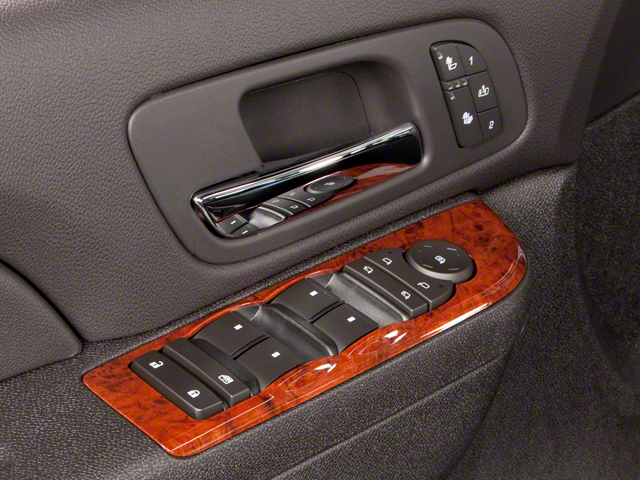

• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Cruise control, electronic with set and resume speed
• Pedals, power-adjustable for accelerator and brake (Includes memory function with (AN3) front bucket seats.)
• Universal Home Remote includes garage door opener, programmable
• Remote vehicle starter system includes Remote Keyless Entry
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right front passenger
• Air conditioning, rear auxiliary
• Heater, rear auxiliary with rear passenger heating ducts
• Defogger, rear-window electric
• Theft-deterrent system, vehicle, PASS-Key III
• Power outlets, 5 auxiliary, 12-volt includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console
• Door trim, side reflectors on rear doors
• Armrests, driver and passenger doors, padded
• Mirror, inside rearview auto-dimming with rear camera display (Includes (UVC) rearview camera system. Not available with (UUL) Audio system with Navigation or (UUK) Audio system with Rear Seat Entertainment and Navigation.)
• Console, overhead mini with map lights
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod includes corner storage pockets on back of visors, Shale-colored
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Coat hooks, driver- and passenger-side rear seat and cargo area
• Storage bin, behind driver-side rear quarter panel
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Rear Parking Assist, Ultrasonic with audible warning
• Rearview camera system

• StabiliTrak, stability control system with traction control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) 3-passenger third row 50/50 split-bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Stolen Vehicle Slowdown and Remote Ignition Block, Remote Door Unlock, Turn-by-Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Visit onstar.com for details and system limitations.)
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL WITH ACTIVE FUEL MANAGEMENT

• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [238.6 kW] @ 5400 rpm
• 335 lb-ft of torque [452.2 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243.1 kW] @ 5300 rpm
• 348 lb-ft of torque [469.8 N-m] @ 4400 rpm)
• iron block (STD)

• Preferred Equipment Group 4SA
• 3.08 Rear Axle Ratio
• 17" x 7.5" Bright Aluminum Sport Wheels
• Front High-Back Reclining Bucket Seats
• Front Full-Feature Reclining Bucket Seats
• Ultrasoft Leather-Appointed Seat Trim
• AM/FM Stereo w/CD/MP3 Playback
• SLT-2 Equipment Package
• Front License Plate Bracket
• Premium Smooth Ride Suspension Package
• 6-Way Power Driver Seat Adjuster
• 6-Way Power Front Passenger Seat Adjuster
• Driver Manual Lumbar Control
• 2nd Row Power Seat Release Only
• Floor Console
• Body-Color Power-Adjustable Heated Outside Mirrors
• Rear Power-Operated Liftgate
• Heated 2nd Row Seats
• 2-Position Driver Seat Memory
• XM Radio
• 4-Wheel Disc Brakes
• Emergency communication system: OnStar Directions & Connections
• Exterior Parking Camera Rear
• AM/FM radio: XM
• Compass
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear seat center armrest
• Rear reading lights
• Rear audio controls
• Rear anti-roll bar
• Rear air conditioning
• Radio data system
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Garage door transmitter
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front fog lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• Bodyside moldings
• Automatic temperature control
• Alloy wheels
• Adjustable pedals
• ABS brakes
• 3rd row seats: split-bench
• Voltmeter
• Tachometer
• Spoiler
• Roof rack
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• 9 Speakers

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 3088
• Curb Weight - Rear (lbs): 2806
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 780
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Multi-link
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.41
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.8
• Tires
• Front Tire Order Code: QAN
• Rear Tire Order Code: QAN
• Spare Tire Order Code: ZRS
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2135
• Rear Tire Capacity (lbs): 2135
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 17.5
• Rear Wheel Size (in): 17 x 17.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall w/rear bumper (in): 202.0
• Width, Max w/o mirrors (in): 79.0
• Height, Overall (in): 76.9
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 31.6
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 9.0
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -

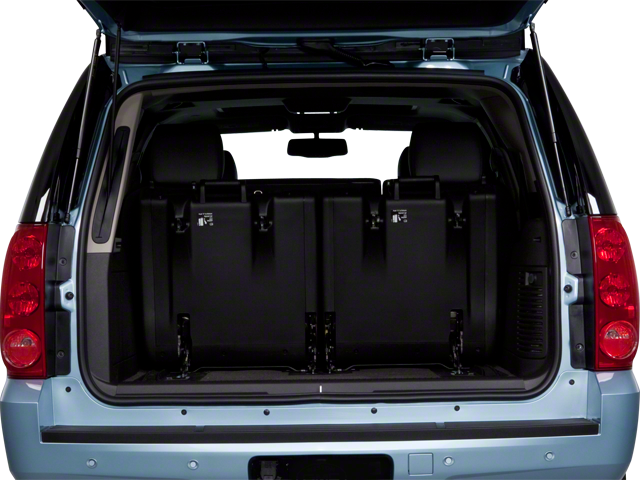

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 81.4
• Cargo Area Length @ Floor to Seat 2 (in): 49.4
• Cargo Area Length @ Floor to Seat 3 (in): 15.2
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 41.7
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 40.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 60.3
• Second Head Room (in): 39.2
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 60.6
• Third Head Room (in): 37.9
• Third Leg Room (in): 25.6
• Third Shoulder Room (in): 61.7
• Third Hip Room (in): 49.1
• Summary

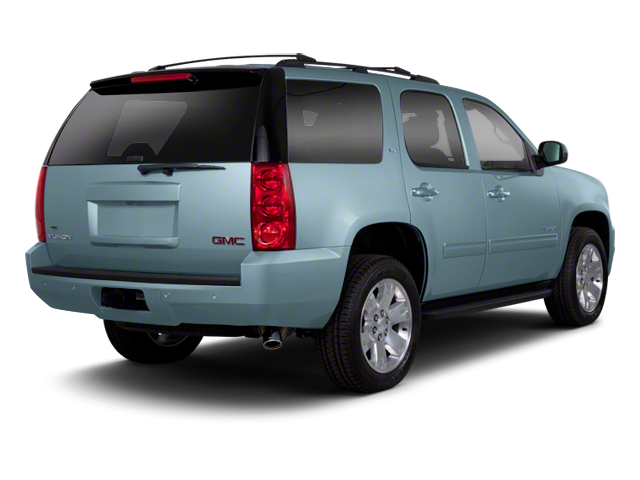

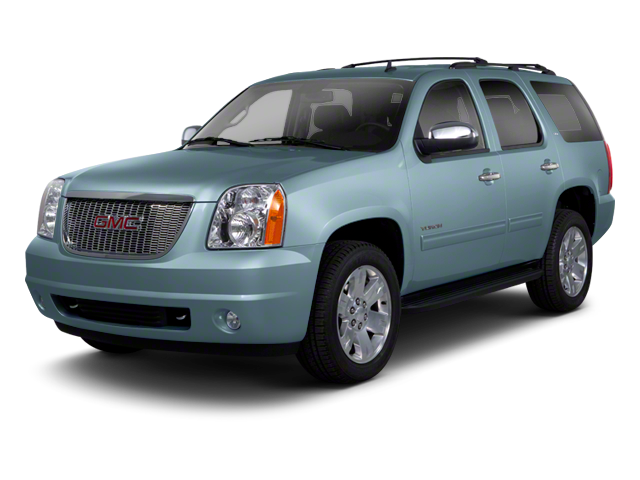

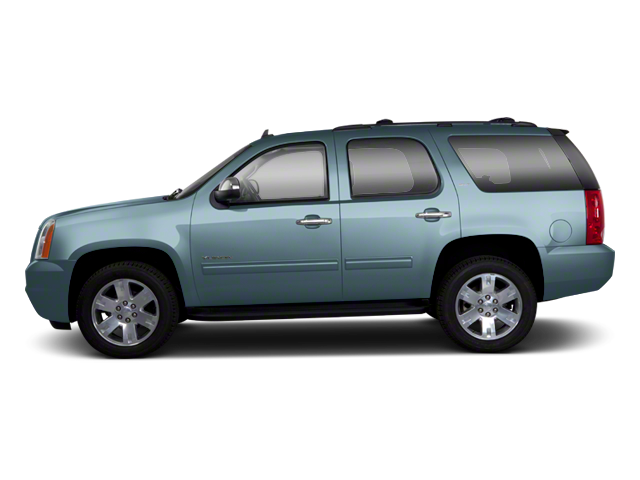

• Vehicle Name: GMC Yukon
• Body Style: 4 Door
• Emissions
• EPA Greenhouse Gas Score: 2
• Tons/yr of CO2 Emissions @ 15K mi/year: 11
